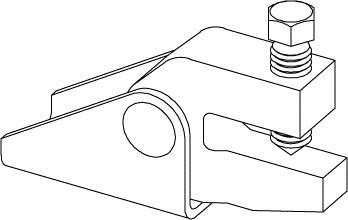

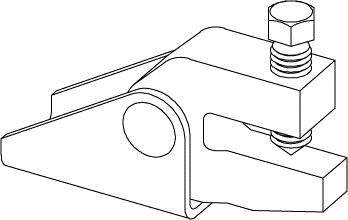

C-Clamp Structural Attachment

Designed for bracing pipe against sway and seismic disturbances.  Universal swivel design allows for attachment at any surface angle combined with concentric loading.  Structure attachment fitting designed to use 1” thru 2” SCH 40 pipe, structural steel, and PHD 12 gauge strut channel (1001 & 1201) as sway bracing elements.  No bracing member thicker than 3/8” can be used in conjunction with this product.  Utilize the Fig. 030 with a PHD Manufacturing pipe attachment fitting and a bracing element to form a complete sway brace assembly.  Sway brace assemblies are intended to be installed in accordance with NFPA 13 and the manufacturer’s installation instructions.
