EC2510E 8-Gallon Gas Powered Wheeled Air Compressor

EC2510E

Metabo - Hitachi

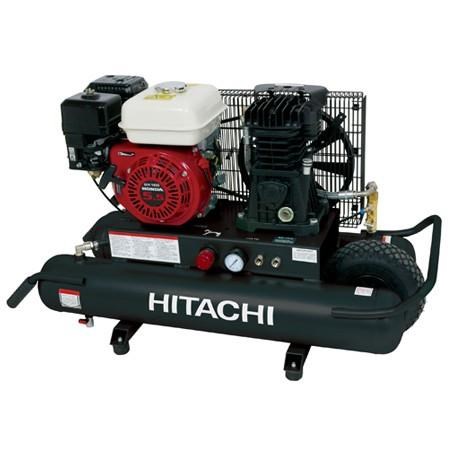

Hitachi EC2510E 8-Gallon Gas Powered Wheeled Air Compressor

Quick Overview

    • Powered by a professional grade Honda GX engine
    • Solid cast iron cylinder provides industry recognized premium material for long life, consistent compression and low oil carryover
    • Baseplate integrated control panel protects the gauge, regulator and plumbing while centralizing the controls for simple operation
    • Oversized oil level site glass allows everyone to monitor the oil level for the pump avoiding pump damage due to lock up from inadequate oil supply
    • Pneumatic throttle control, that uses air instead of a cable to adjust the throttle, eliminates the common failure of cable throttles due to crimping and breaking
    • Full-size 3/8" locking regulator comes pre-installed
    • Ball valve tank drains makes required tank draining comfortable and convenient
    • Download the EC2510E Tool Card
    • Note- the power rating of the engine is the net power output tested on a production engine for the engine model and measured in accordance with SAE J1349 at a specified rpm. Mass production engines may vary from this value. Actual power output for the engine installed in the final machine will vary depending on numerous factors, including the operating speed of the engine in application, environmental conditions, maintenance, and other variables.

    Includes:

    • Synthetic Oil (SAE5W50) 8 oz. (19210B)
    • Breather Pipe Plug (885483)
    • Wheel (885423)
    • Pressure Gauge (885446)
    • Drive Belt (885444)
    • Filter (881553)
Interested in this item or want more information?

Hours:

Phone: 401-739-9200

Email: customerservice@warwickfasteners.com

Can't find what you want? Give us a call and we can help you find it.

Details


Width 18.1"
Power Output 5.5 Net HP* @ 3,600 RPM
Tank Capacity  8-Gallon
Displacement  196cc
Motor RPM  3,200
CFM @ 90 PSI 9.3
PSI Range 116-145
Control Panel Baseplate
Regulator Size 3/8"
Oil Level Sight Glass Oversized
Oil Level Indicator Sight Glass
Crankcase Breather Metal
Engine Throttle Control Pneumatic
Actual Weight 144 lbs
Length 42.1"
Height 24.4"
* Max HP

Additional Information


Manufacturer: Metabo - Hitachi
