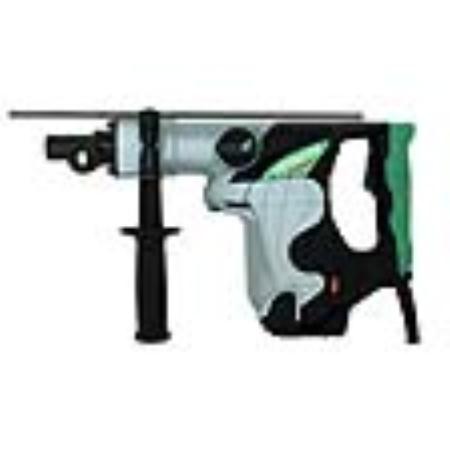

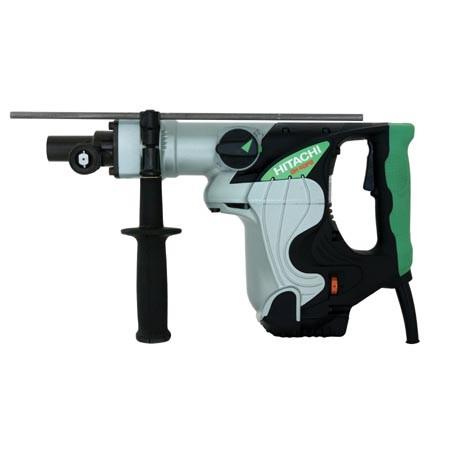

Hitachi DH40FR 1-9/16 Inch Spline Shank Rotary Hammer, 2-Mode, EVS
- 7.4 ft-lbs of impact energy delivering high-speed drilling and forcible chipping with low vibration and noise level
- 9.2 Amp motor increases productivity
- 2 modes of operation, hammer & drill and hammer only for flexibility within a range of applications
- Built-in electronic control circuit keeps speed constant even as load varies
- Needle-pin slip clutch for higher slip torque accuracy and safety
- Soft, non-slip elastomer grip absorbs vibration and improves comfort and handling
- Revolutionary IDI (Internal Double Insulation) Technology incorporated into the housing of the tool greatly improves reliability and extends the tool life
- Removable side handle with depth gauge improves control and ensures accurate drilling depth
- Download the DH40FR Tool Card
Includes:
- Depth Gauge (971786)
- Side Handle (313078)
- Injection Molded Carrying Case (322152)
- Dust Cover (993245)
- Hex Wrenches (944458, 943277, 944459)
- 1 oz. Tube Hammer Grease (981840)
Interested in this item or want more information?
Hours:
Phone: 401-739-9200
Email: customerservice@warwickfasteners.com
Can't find what you want? Give us a call and we can help you find it.
Details
| Tool Length |
16-15/16" |
|
|
|
|
| Tool Weight |
14.3 lbs |
|
|
|
|
| IDI Technology |
Yes |
|
|
|
|
| Shank |
Spline |
|
|
|
|
| Chuck Size |
1-9/16" |
|
|
|
|
| No-Load Speed |
240-480 rpm |
|
|
|
|
| Impact Rate |
1,320-2,650 bpm |
|
|
|
|
| Impact Energy |
7.4 ft-lbs |
|
|
|
|
| Amps |
9.2 |
|
|
|
|
| Capacity: Drill Bit |
1-9/16" |
|
|
|
|
| Capacity: Core Bit |
4-1/8" |
|
|
|
|
| Modes of Operation |
Hammer/Hammer & Drill |
|
|
|
|
| Switch |
EVS |
|
|
|
|
| Handle Type |
D |
|
|
|
|
| Power Input |
950W |
|
|
|
|
Additional Information
Manufacturer: Metabo - Hitachi
