Heli-Pin

8344

Anchors Powers DeWalt

Helical Facade Anchor

Quick Overview


  • Mechanical connections between a masonry façade and its backup material
  • Replace missing or corroded wall ties
  • Used in new construction by being embedded into the mortar joint
Interested in this item or want more information?

Hours:

Phone: 401-739-9200

Email: customerservice@warwickfasteners.com

Can't find what you want? Give us a call and we can help you find it.

Details

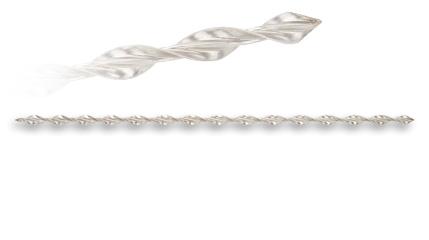

Heli-Pin    Helical Facade Anchor

Product Description :
The Heli-Pin anchor is a one-piece stainless steel helical wall tie system used for anchoring existingbrick veneers to the back-up structural members without exposing hardware. The helical designallows the tie to be driven quickly and easily into a predrilled pilot hole with a Heli-Pin setting tooland a roto-hammer drill (or embedded into mortar joints in new construction) to provide a reliablemechanical connection between a masonry façade and its backup material or between multiplewythes of brick. Existing façades constructed of various masonry materials can be reattached andreinforced using the Heli-Pin. They are ideal for stabilizing areas with missing or corroded wall tiesas well as retrofits to multiple width masonry wall sections. Heli-Pin anchor performs in concreteand masonry as well as wood and steel studs.

General Applications and Uses :

  • Mechanical connections between a masonry façade and its backup material
  • Replace missing or corroded wall ties
  • Used in new construction by being embedded into the mortar joint


    • Features and Benefits :
    + Virtually invisible repairs to masonry building facades
    + Ease and speed of installation with a roto-hammer and available setting tool
    + Made of corrosion resistant stainless steel
    + Helical shaped tie is both tension and compression resistant, and provides solid connection with the base material.
    + Variety of lengths and diameters, for a broad range of applications
    + Reinforced central core for high shaft strength

    Approvals and Listings :
    Tested in accordance with CSA A370

    Guide Specifications :
    CSI Divisions: 03151-Concrete Anchoring, 04081-Masonry AnchorageAnchors shall be Heli-Pin as supplied by Powers Fasteners, Inc., Brewster, NY.Anchors shall be installed in accordance with published instructions and the Authority HavingJurisdiction.


    View Product Specification

    Additional Information

    Manufacturer: Anchors Powers DeWalt
