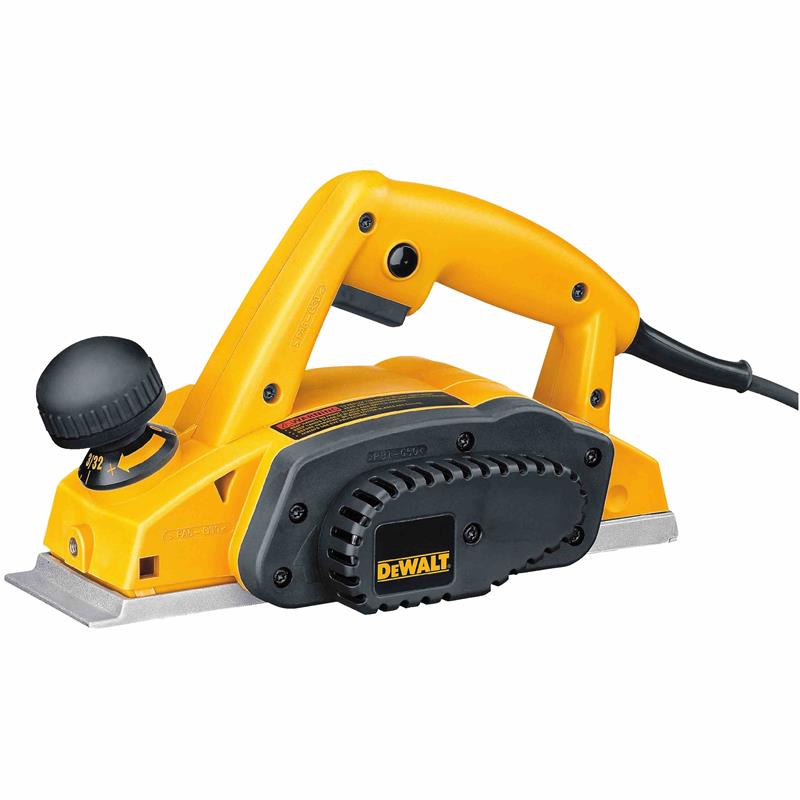

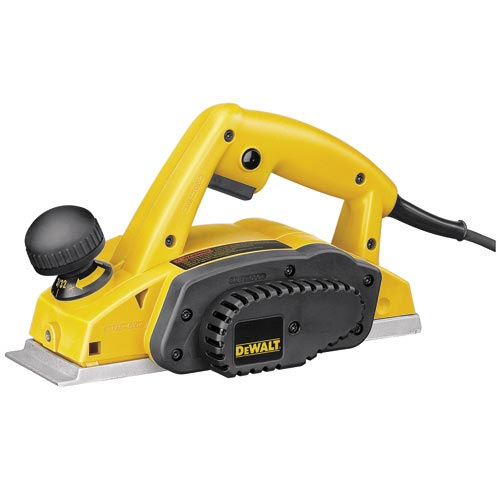

The DW680K 3-1/4" Planer Kit with 3/32" (2.5mm) Depth of Cut has a heavy-duty 7.0 Amp motor that provides a smooth, even finish in the hardest of woods. 3/32" maximum depth of cut per pass decreases passes on your material.




          - Amps 7.0Amps
 - No Load Speed 15,000rpm
 - Depth of Cut (mm) 2.5mm
 - Depth of Cut (inches) 3/32''
 - Planning Width 3-1/4''
 - Rabbeting Depth 1/2''
 - Tool Weight 6.2lbs
 - Shipping Weight 12lbs




          Interested in this item or want more information?
          Hours:


          Phone:  401-739-9200
          Email:  customerservice@warwickfasteners.com
          Can't find what you want? Give us a call and we can help you find it.








			Details



                    Features & Specs

                    FEATURES
	- Heavy-duty 7.0 amp motor provides a smooth, even finish in the hardest of woods
 - 3/32" (2.5mm) maximum cut in one pass reduces the amount of passes on your material
 - Accepts large resharpenable high-speed steel blades for straight edging or framing applications
 - Calibrated Depth Adjustment Knob for accurate depth setting and eliminating the need to re-zero your depth
 - Also accepts reversible carbide blades for more detailed, accurate woodworking
 - Precision-machined shoe bottom and side provides flat surface finish as well as accurate and square rabbet joints
 - Kickstand allows you to rest the planer on the material in between passes without gouging your material
 - Rubber-coated front-height adjustment knob for greater comfort and better control
 - Three precision-machined grooves in front shoe provide three different sizes for edge chamfering
 - Poly-V drive belt provides increased belt durability
 - Ergonomically designed, two-finger trigger for increased comfort and less user fatigue
 - 15,000 rpm for a smooth, high-quality cut

                        Specifications

                                -
                                    Amps
                                    7.0 Amps


                                -
                                    Depth of Cut (inches)
                                    3/32 in


                                -
                                    Depth of Cut (mm)
                                    2.5 mm


                                -
                                    No Load Speed
                                    15,000 rpm


                                -
                                    Planer Type
                                    Portable


                                -
                                    Planning Width
                                    3-1/4 in


                                -
                                    Power Tool Type
                                    Corded


                                -
                                    Rabbeting Depth
                                    1/2 in


                                -
                                    Tool Weight
                                    6.2 lbs



                        Includes
	- Two reversible carbide blades
 - Rabbeting fence
 - Kit Box





			 Additional Information


			Manufacturer: DeWalt
